I 3D-printed an adapter to put my Sesame smart lock on my door

Originally posted on Imgur on April 16, 2019. This post brings the story, photos, and videos together here on the blog.

I backed Candy House Inc.’s Sesame Kickstarter project in 2015. Unfortunately, by the time I received my pledge rewards at the beginning of 2017, I had moved, and the lock didn’t fit my new door and lock.

I stored the locks until I realized Candy House was 3D-printing adapters for some of its Amazon customers. Unfortunately, they didn’t want to help me: their answer was to buy their new, smaller model made for Japan. So I took the problem into my own hands. If you’re interested in the lock itself, here’s Candy House’s website.

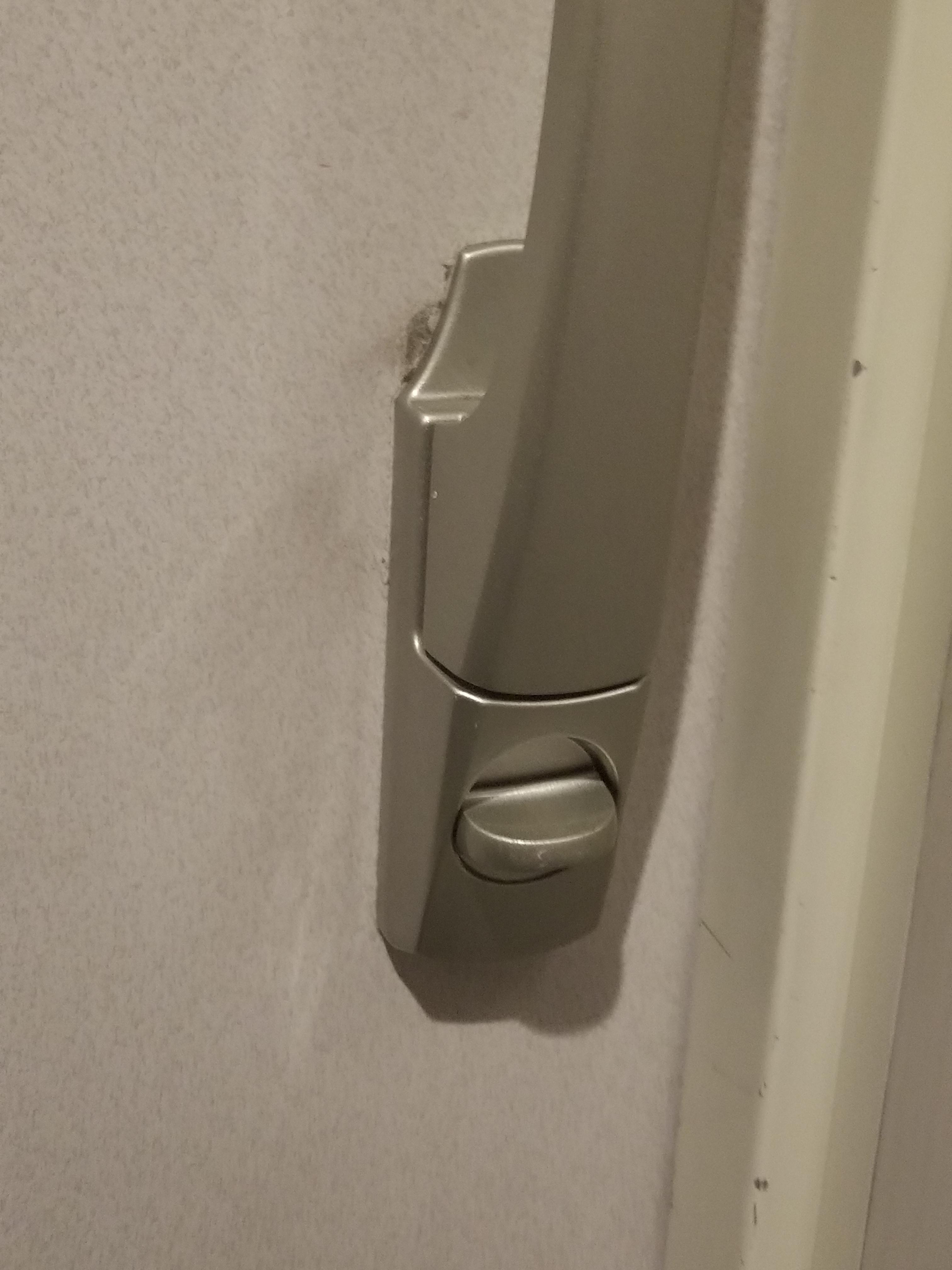

This is what my door handle and lock look like. There is no flat surface on which I could stick the Sesame lock.

Designing the adapter

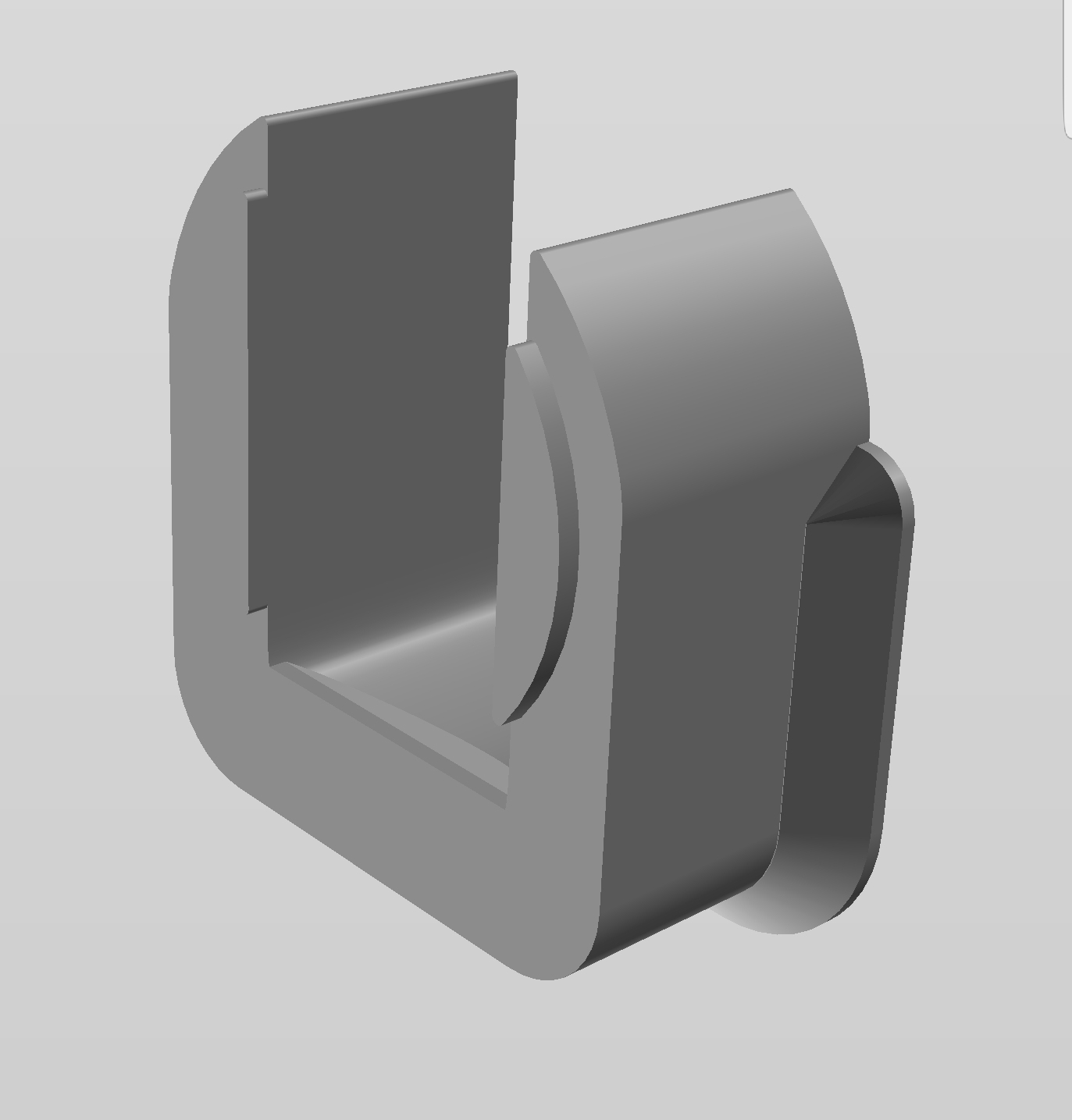

I designed the adapter in Autodesk Fusion 360. It was my first time using the software, so it took me some time, but it was fun and I learned a lot.

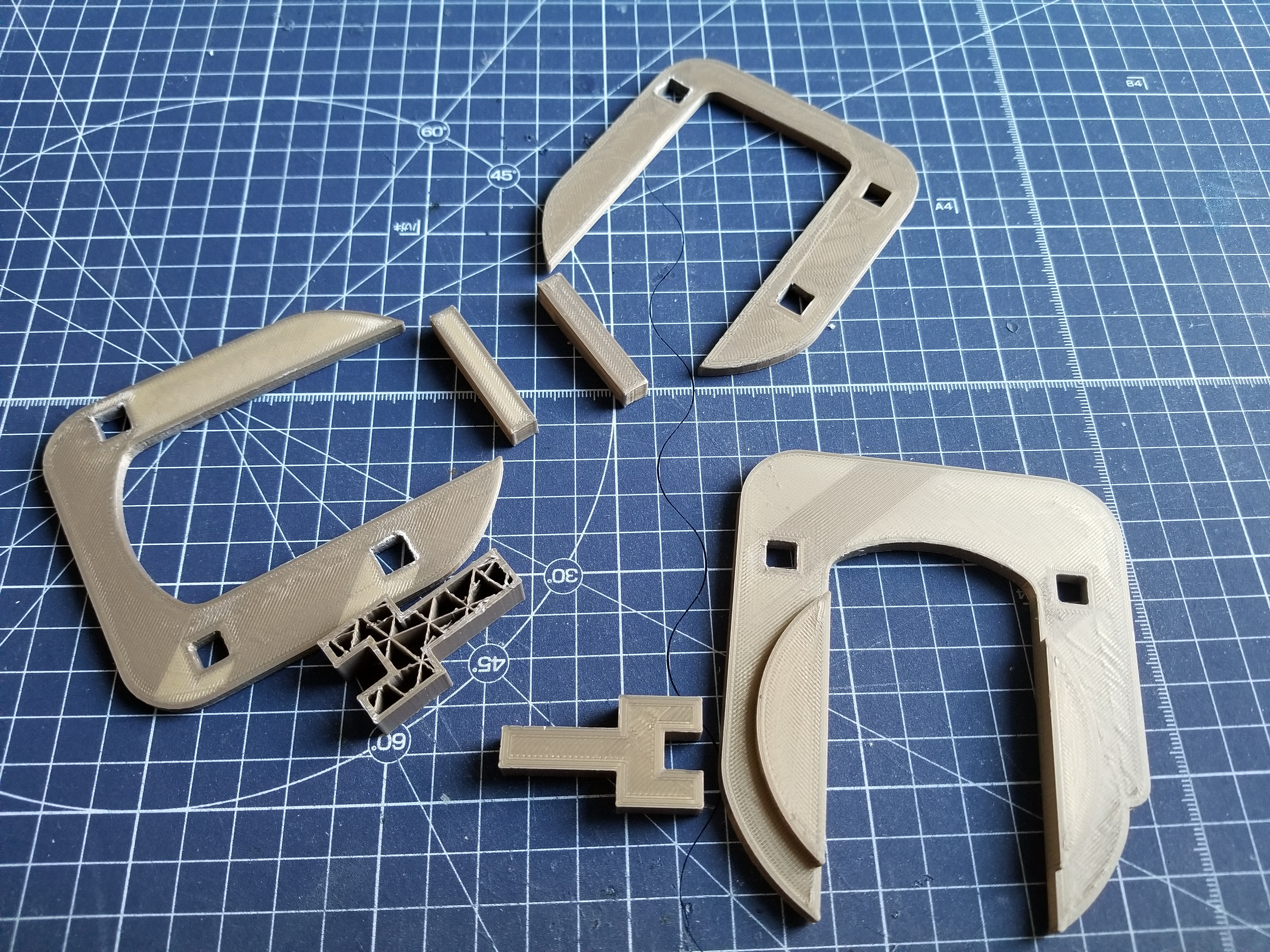

Rather than printing the whole design, which takes four to five hours, on every iteration, I only printed thinner parts that allowed me to confirm the dimensions and fit.

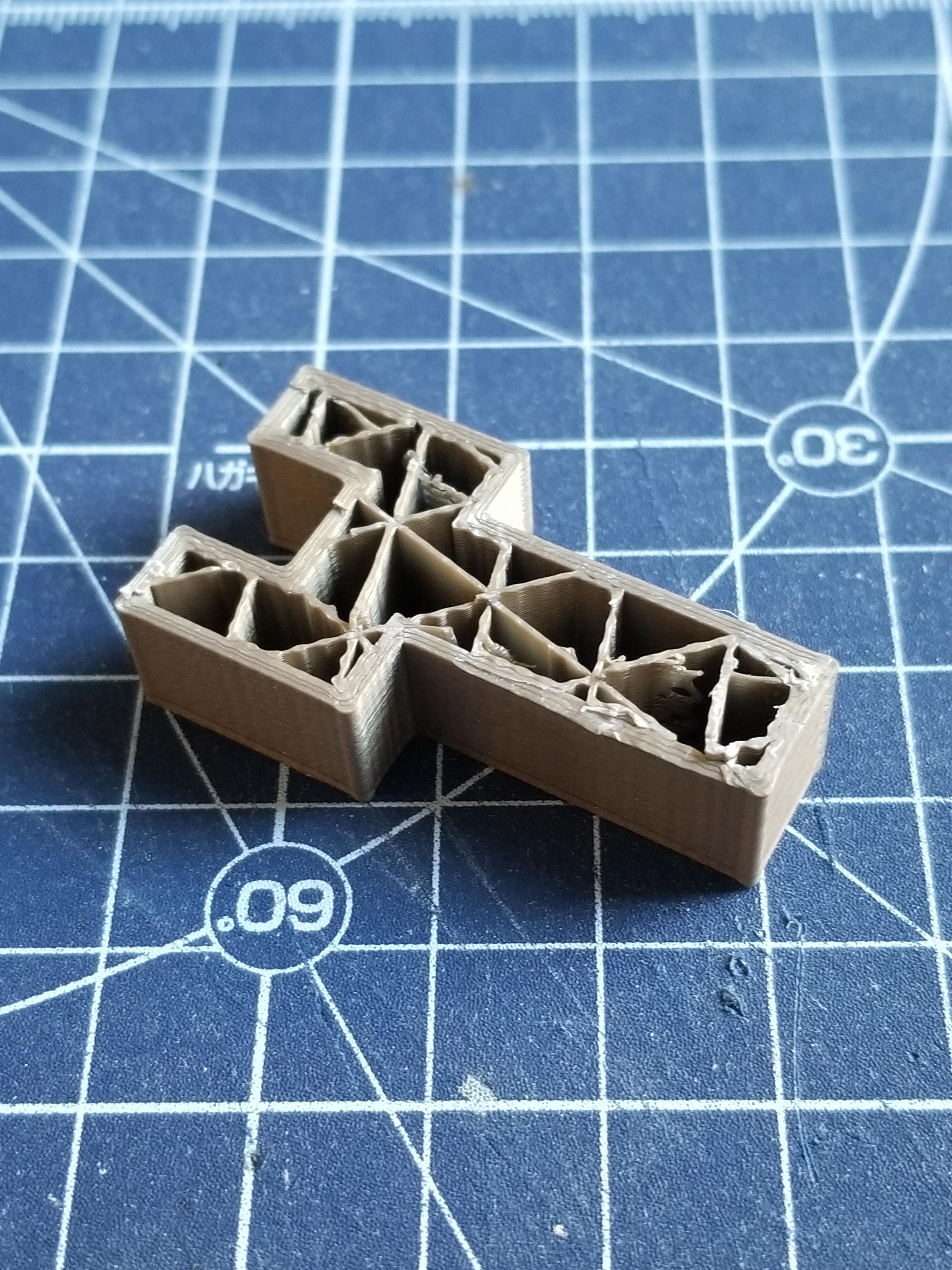

I realized too late that changes to my design no longer allowed the knob to rotate inside the casing. However, I learned that it is fairly easy to separate layers, and I was able to make the part shorter without reprinting it.

Printing the final parts

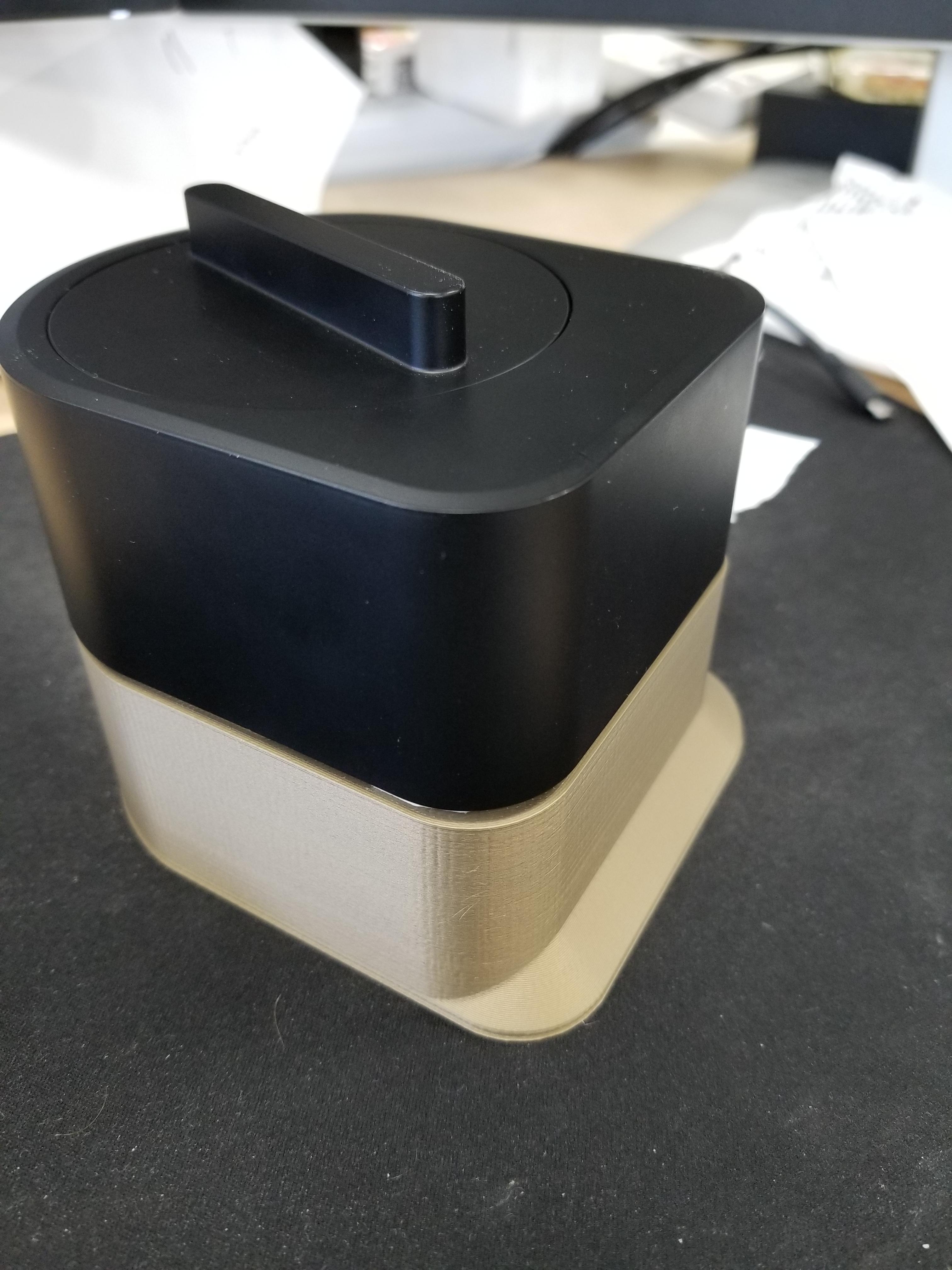

The printer is an Ultimaker 3 Extended. My employer acquired it recently and built a whole “Fab room”, as a few teams are getting into hardware prototyping. I was so happy to be allowed to use it!

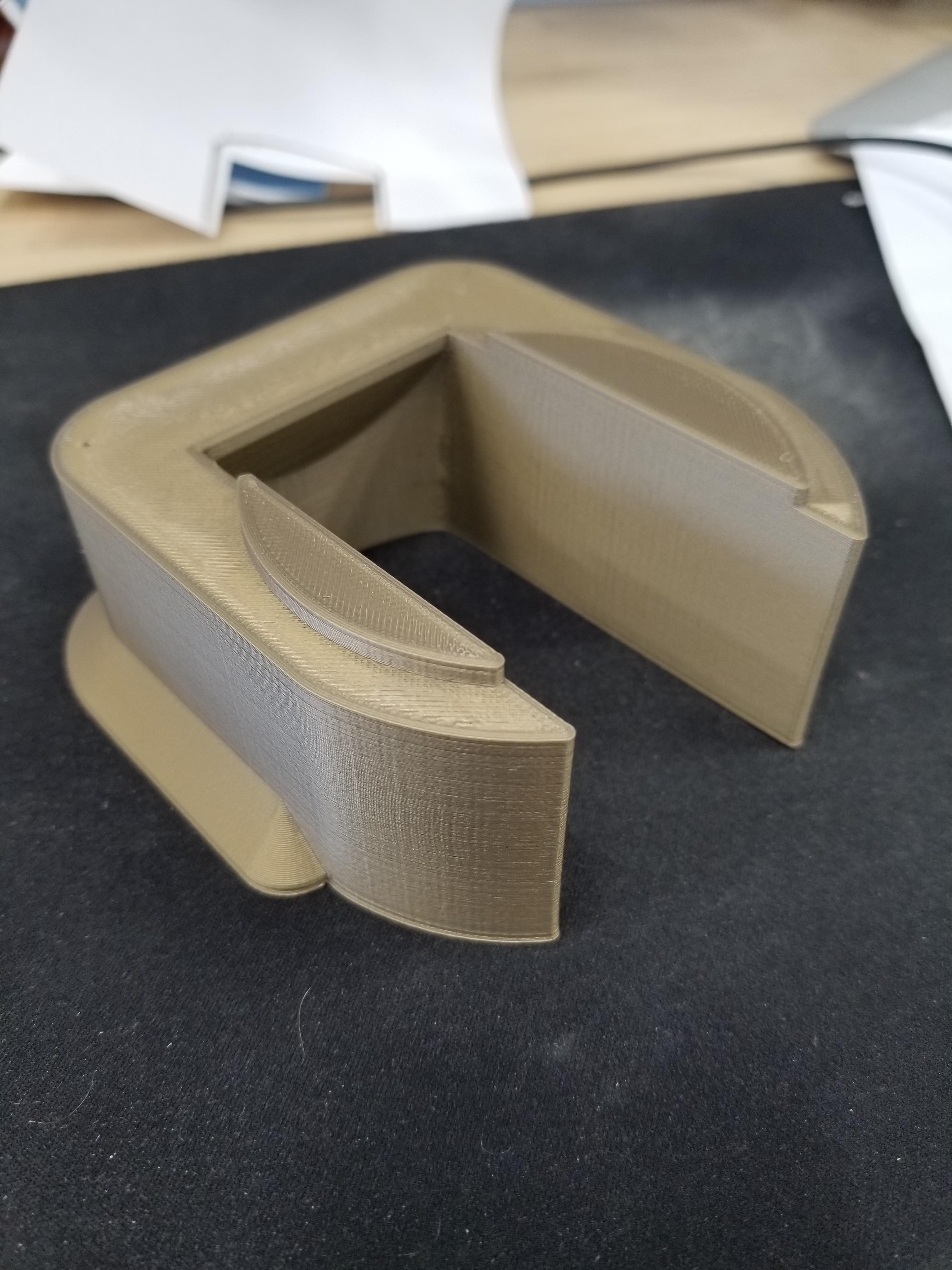

Five hours later, the print was done. Actually, this was the next morning, as I left it to print overnight. I used ABS “pearl gold” filament: that’s what was loaded in the printer, and I didn’t want to mess with the spools and settings.

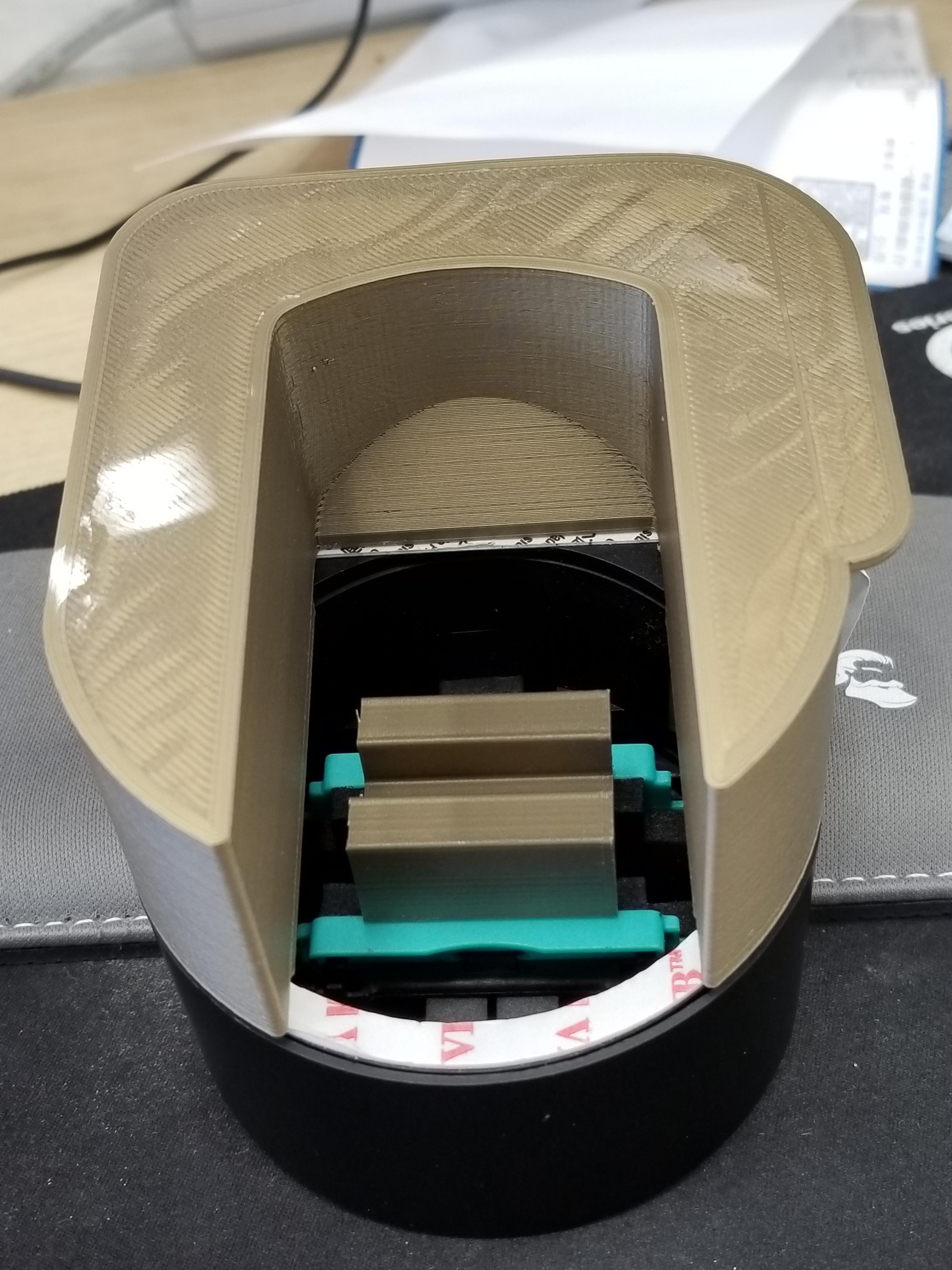

Here is the whole assembly seen from below. Three things stand out:

1. To reproduce the door handle’s curve, I used paper, a marker, and a scanner.
2. The 30° overhang didn’t require any supports and came out very clean.

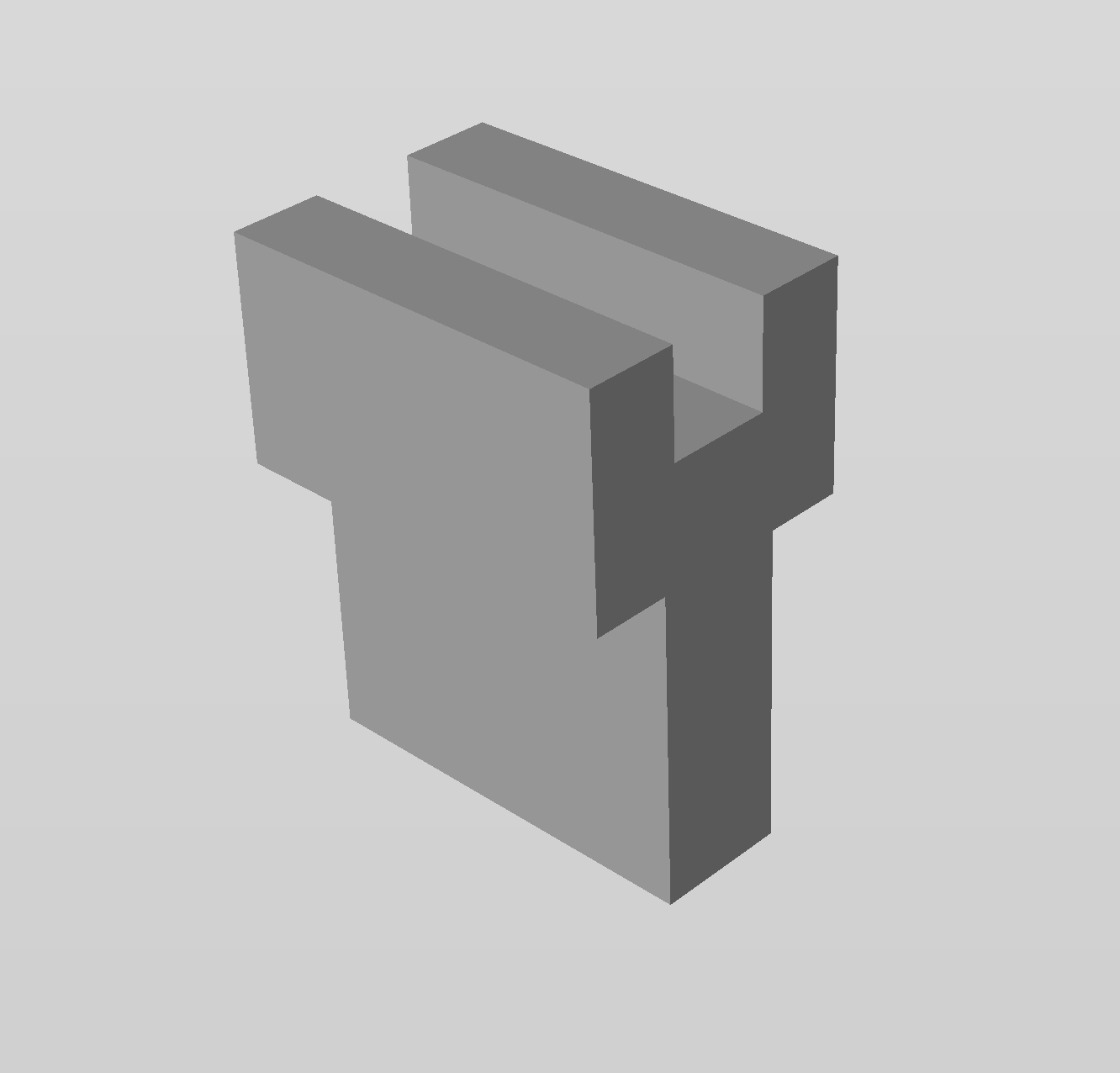

3. The printed thumbturn part was initially too long, so I had to cut it shorter. You can see the rough edges on its left side.

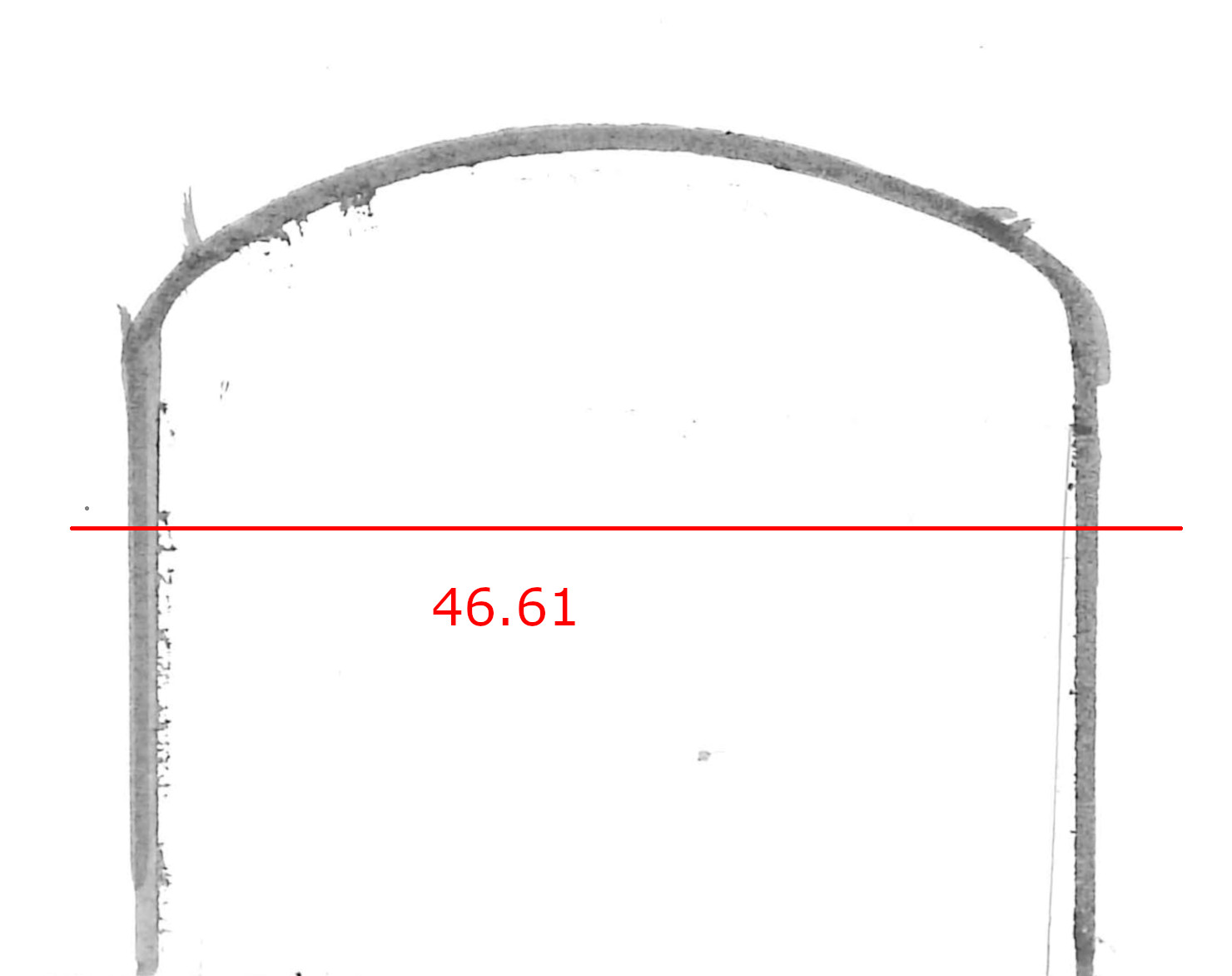

To reproduce the door handle’s curve, I:

1. Loosened a couple of screws on the handle.
2. Slid a sheet of paper behind it.
3. Traced the curve with a marker.
4. Scanned the result.
5. Inserted the image into Fusion 360.
6. Scaled it. I still have to understand how that works properly in Fusion 360!
7. Used Fusion 360’s control spline tool to trace the shape.

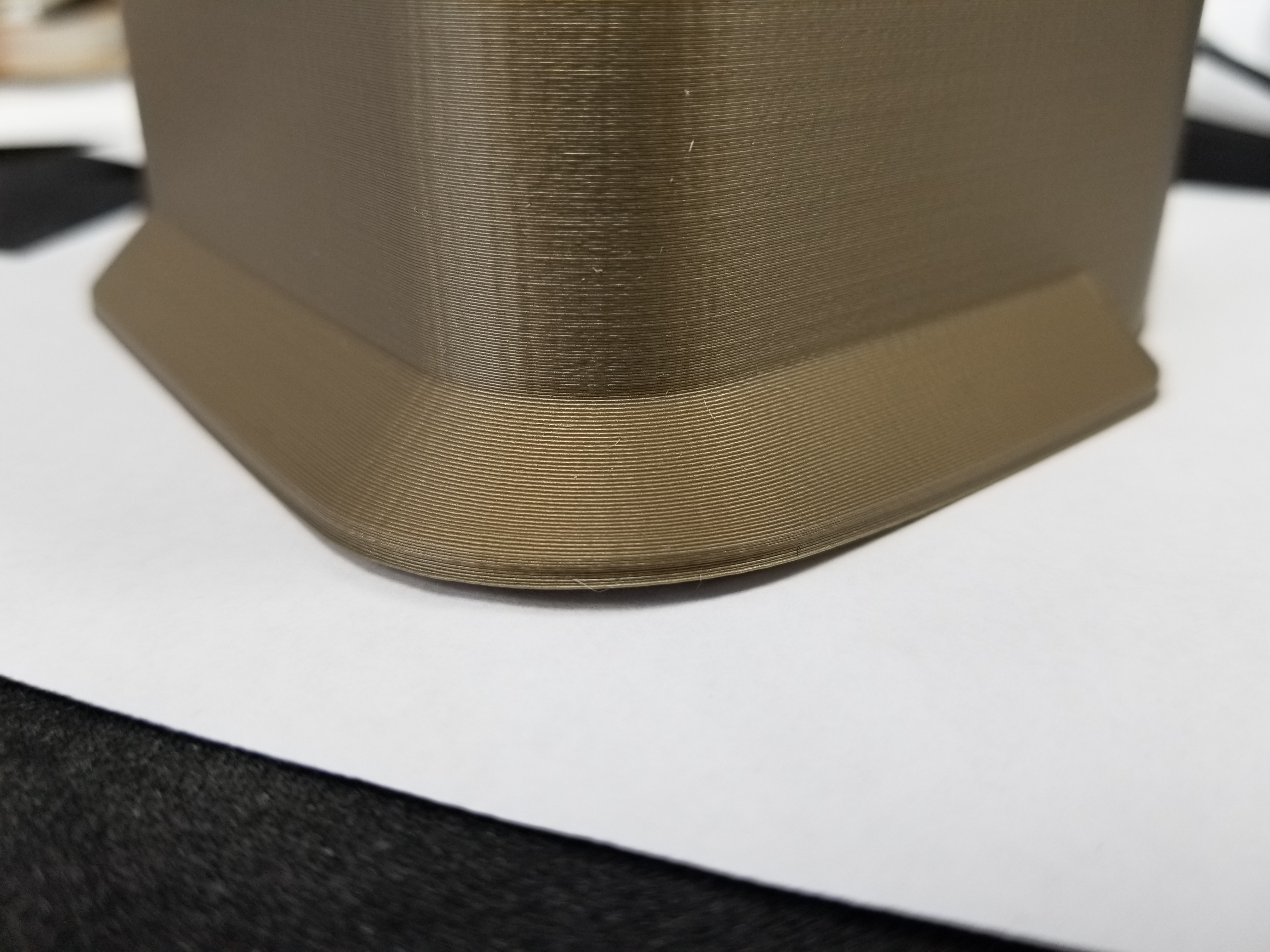

Unfortunately, the print wasn’t perfect. I had read about warping, but this was the first time I experienced it myself. None of my prototype prints in the same material had this problem.

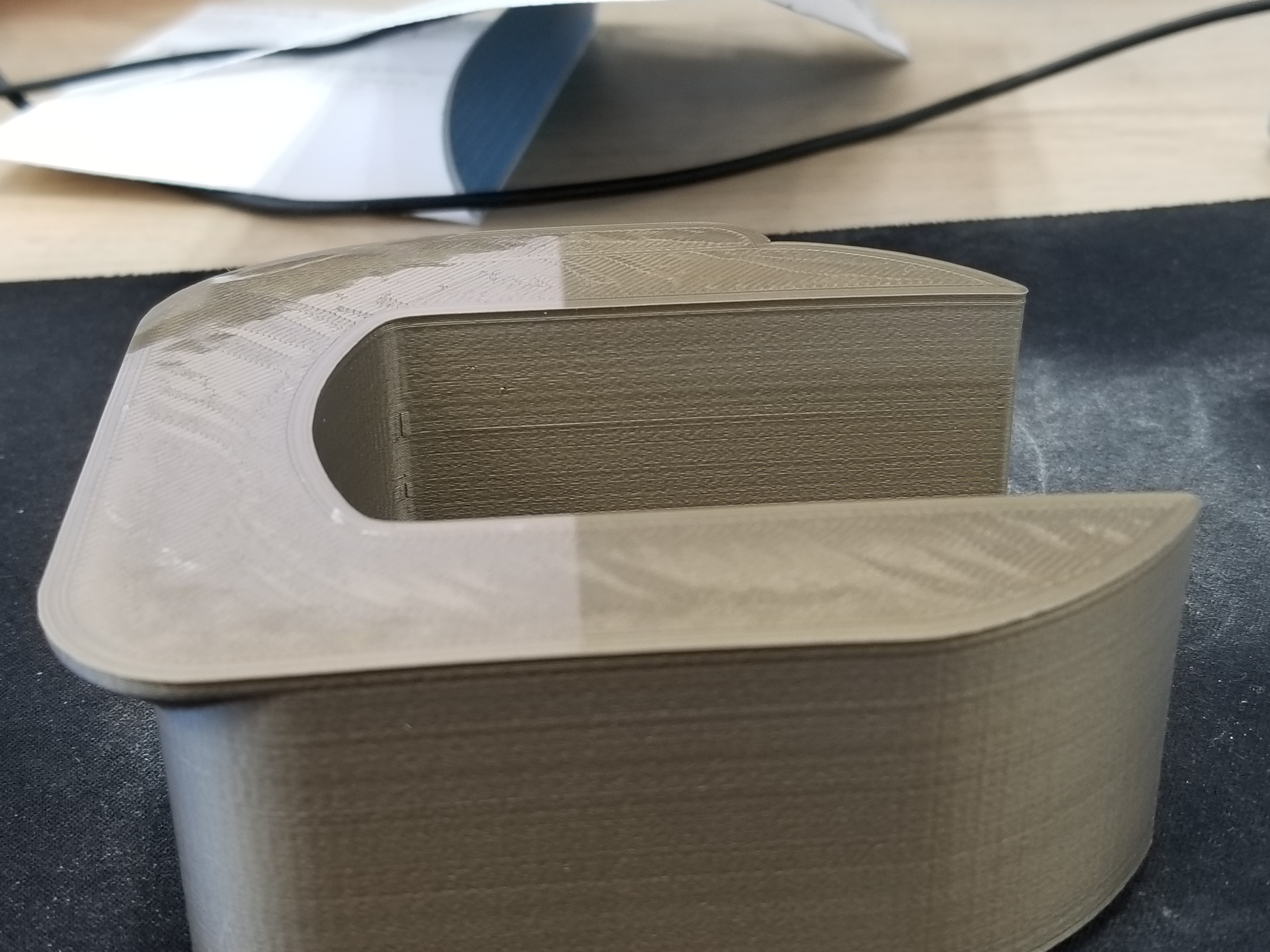

On the first layer, it’s fairly visible that the print warped and almost cracked. I wonder if the bed wasn’t hot enough. Next time, I’ll try hairspray and a brim, and maybe adjust the bed temperature, although I expected Cura’s presets to be acceptable.

Fitting it to the door

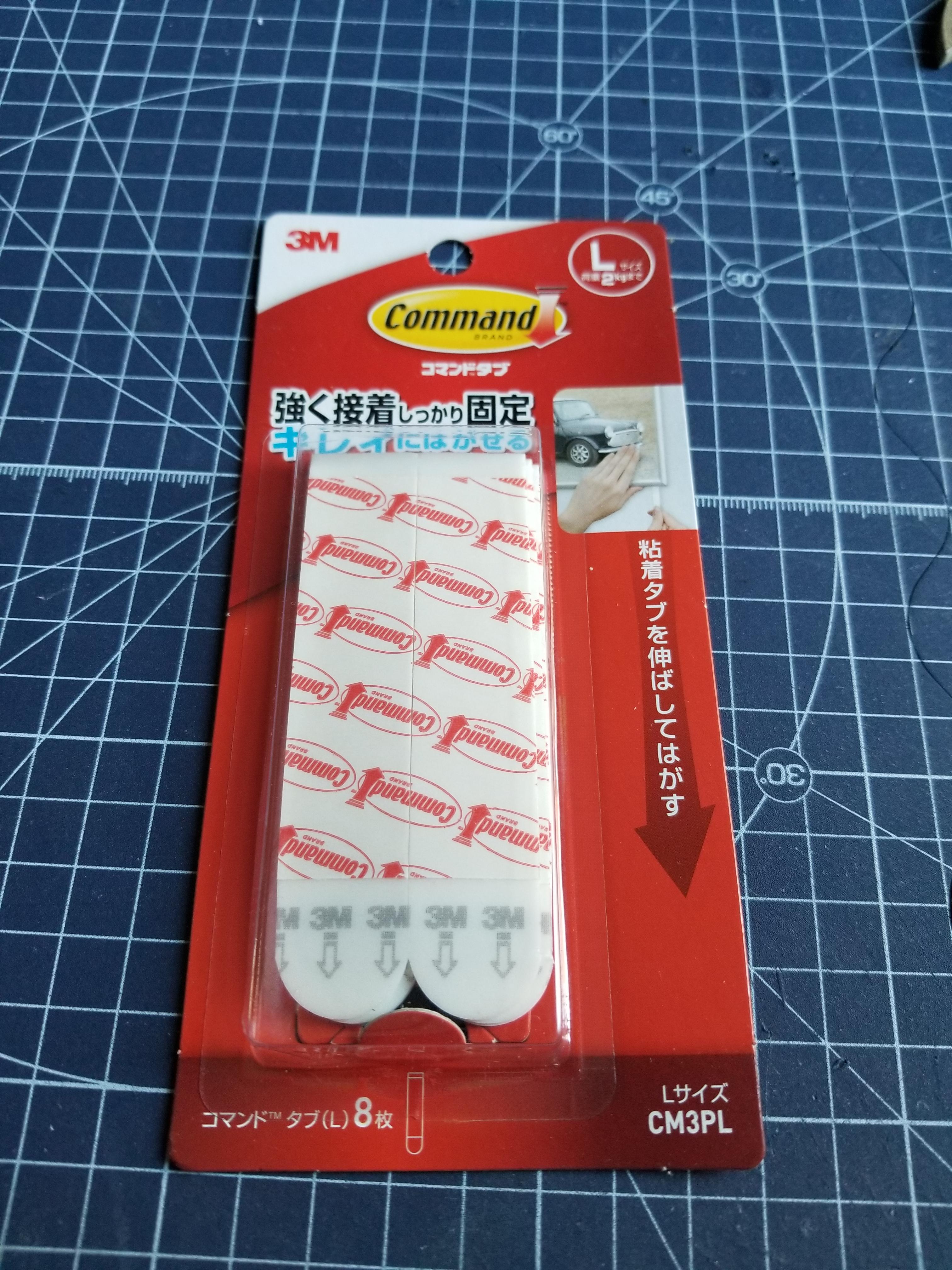

It was easy to figure out that Candy House uses 3M Command strips to stick the Sesame lock to the door. I didn’t know about those before; they might be a revolution for me! These L-size refills will go on each side of my adapter to secure it to the door.

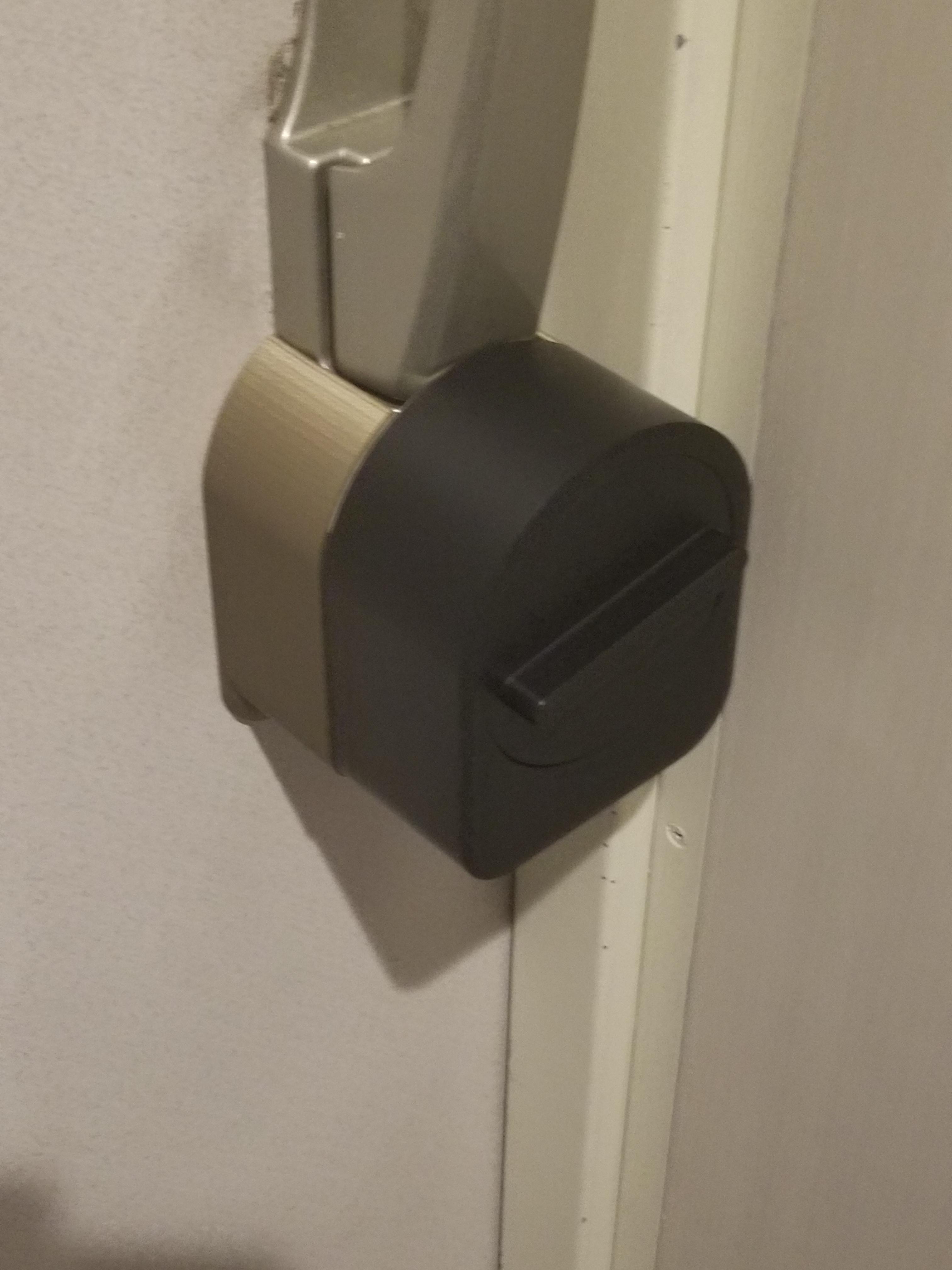

Fits like a glove! The snug fit around the door handle and the resulting friction also help reduce the strain on the Command strips. Even without them, the whole assembly was able to hold onto the door and open and close the lock.

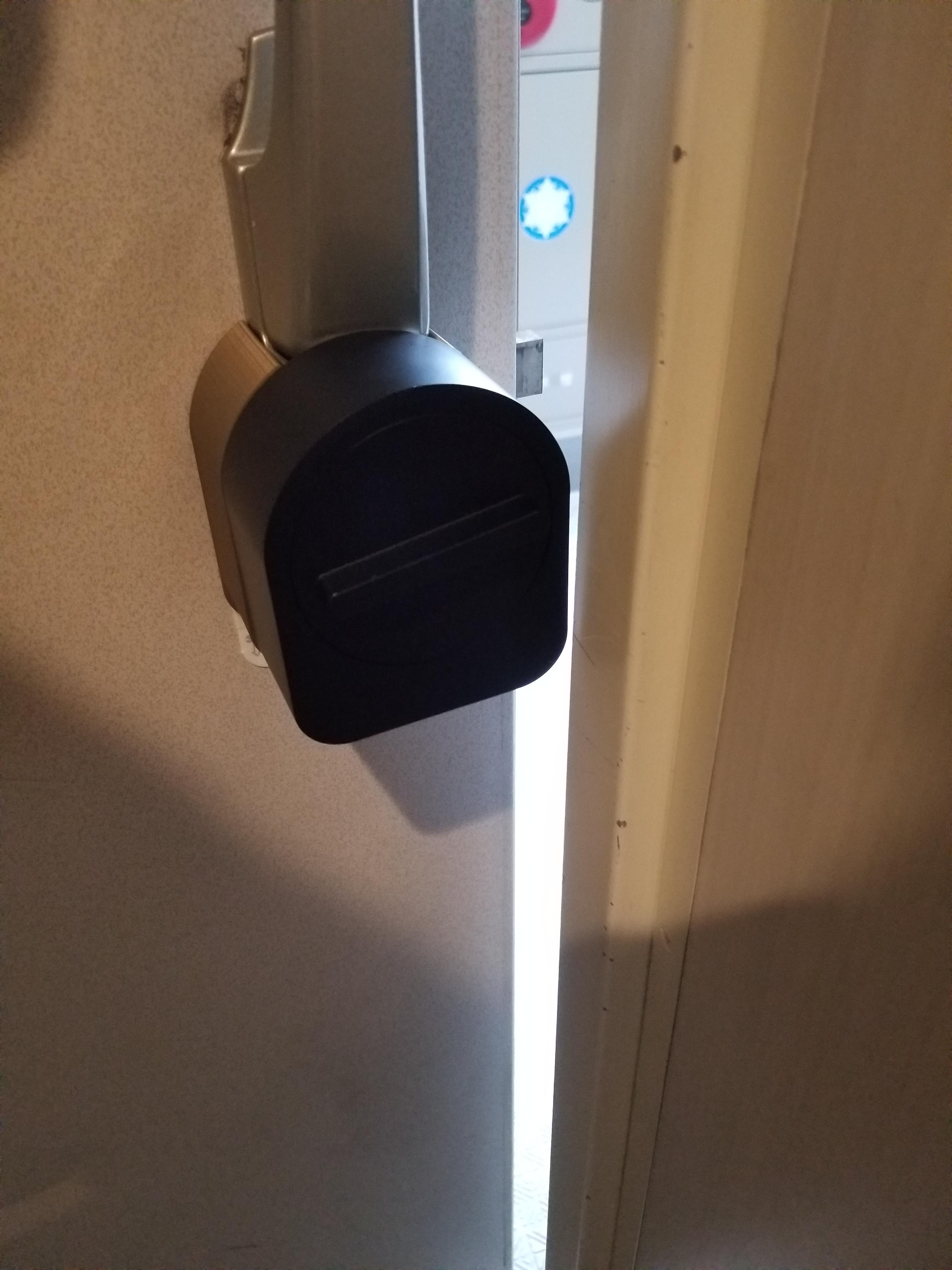

One issue I had to deal with early in the design phase was clearance: centering the smart lock would have made it bump into the door frame when opening the door. I had to offset it a bit away from the frame. Thanks to the Sesame’s design, it isn’t necessary to perfectly center the motor’s rotation axis on the lock’s rotation axis.

Final test: it works!
